SKY65338-21 450-470 MHz Transmit/Receive Front-End Module

SKYWORKS SKY65338-21 is a high-efficiency Front-End Module (FEM) that incorporates a transmit and receive path, and an antenna transmit/receive (T/R) switch. The transmit path consists of a high efficiency Power Amplifier (PA) followed by an harmonic filter for rejection of harmonic frequencies. The PA is implemented using SKYWORKS high reliability Heterojunction Bipolar Transistor (HBT) process and is Class AB biased to provide maximum efficiency with a low spurious output. A high linearity and high isolation Single-Pole Double-Throw (SPDT) switch is used at the common antenna interface between the transmit and receive paths. The receive path is a low insertion loss through-path with input and output ports internally matched to 50 Ω.

技术特性

Transmit output power > +25 dBm
High gain in transmit path: 32 dB
High transmit/receive isolation > 30 dB
Internal RF match and bias circuits
All RF ports internally DC blocked
Single DC supply = +3.6 V
Small footprint, MCM (12-pin, 8 x 8 mm) SMT package (MSL3, 260 􀁱C per JEDEC J-STD-020)

应用领域 APPLICATION

Tetra radio
Remote metering
GSM
WLL transmitters

订购信息 Ordering Information

SKY65338-21

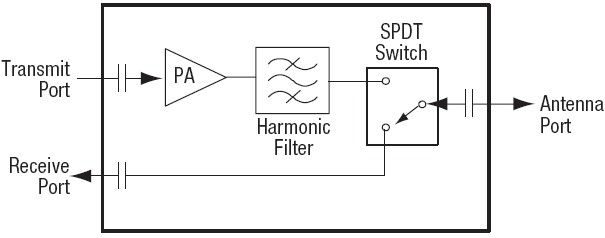

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY65338-21 数据资料DataSheet下载:pdf	Rev.V2	2 页
