SKY65346-21 900 MHz Transmit/Receive Front-End Mod

The SKY65346-21 is a high performance transmit/receive (T/R) Front-End Module (FEM) ideally suited for use in 900 MHz Industrial, Scientific, and Medical (ISM) applications. A double-pole, double-throw (DPDT) switch allows the device to select between two antenna ports (ANT1 and ANT2 pins) for the transmit or receive path. A single-pole, double-throw (SPDT) switch selects which signal path is routed to the transceiver port (RFIO pin). The receive path has a Low-Noise Amplifier (LNA) bypass switch.

技术特性

Externally available bias circuits
Control logic
Cascaded receive gain: 12.4 dB
Cascaded Noise Figure: 2.4 dB
Transmit power: +26 dBm
Single DC supply
Shutdown mode
Small, MCM (26-pin, 5 x 5 mm) package (MSL3, 260 °C per
JEDEC J-STD-020)

应用领域 APPLICATION

Automated meter reading

订购信息 Ordering Information

SKY65346-21

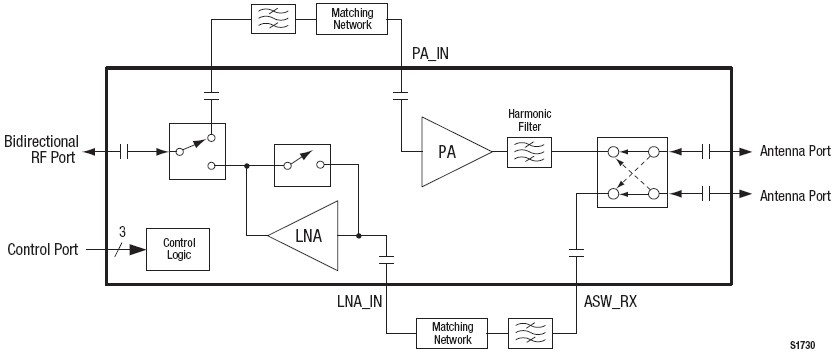

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY65346-21 数据资料DataSheet下载:pdf	Rev.V2	2 页
