SKY65534-11 2.4 GHz WLAN/Bluetooth® Front-End Module

The SKY65534-11 is an integrated Intera™ Front-End Module (FEM) for 802.11b/g WLAN applications. A single supply voltage and a positive supply switch control simplify bias requirements. The device is manufactured using SKYWORKS InGaP Heterojunction Bipolar Transistor (HBT) process. Modules are 100 percent tested before shipment for guaranteed performance. The SKY65534-11 is targeted for high-volume 802.11b/g WLAN access point, PCMCIA, and PC card applications.

技术特性
  • Integrated high performance 2.4 GHz PA, harmonic filter, LNA with bypass, and T/R switch
  • Fully-matched input and output
  • LNA with integrated bypass mode
  • High performance SP3T switch to support Bluetooth/WiFi functions
  • Integrated positive slope power detector
  • Transmit gain: 26 dB
  • Receive gain: 12 dB
  • Output power: +19 dBm @ 3% EVM, 64 QAM 3/4
  • Direct connection to battery with 3.6 V nominal supply
  • Small, QFN (16-pin, 2.5 x 2.5 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
应用领域 APPLICATION
  • WiFi-enabled smartphones, tablets, and mobile/portable devices
  • System-in-Package (SIP) modules for embedded systems
订购信息 Ordering Information
  • SKY65534-11

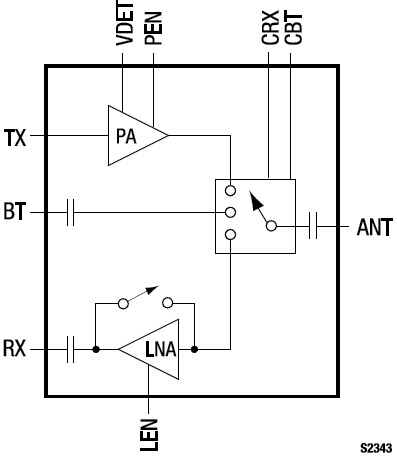

功能框图 Functional Block Diagram

SKY65534-11 功能框图
