SKY67107-306LF 2.3-2.8 GHz Two-Stage, High Linearity and High Gain Low-Noise Amplifier
The SKY67107-306LF is a GaAs pHEMT and HBT two-stage, Low-Noise Amplifier (LNA) with active bias and high linearity performance. The pHEMT front end of the device provides an ultra-low Noise Figure (NF) while the HBT output stage provides high gain, linearity, and efficiency. The SKY67107-306LF operates in the frequency range of 2.3 to 2.8 GHz. For lower frequency operation, the pin and layout-compatible SKY67105-306LF (Data Sheet document # 201518) should be used.
技术特性
- Ultra-low NF: 0.85 dB @ 2.6 GHz
- High gain: 32 dB @ 2.6 GHz
- Low quiescent current: 125 mA
- Stage 1 and 2 adjustable current
- Wideband performance, useable to 2.8 GHz
- Small, QFN (16-pin, 4 x 4 mm) Pb-free package (MSL1, 260 °C per JEDEC J-STD-020)
订购信息 Ordering Information
| SKY67107-306LF Two-Stage LNA |
SKY67107-306LF |
SKY67107-306LF-EVB |
|
应用领域 APPLICATION
- LTE cellular infrastructure and ISM band systems
- Ultra low-noise, high gain and high linearity systems
- Digital satellite radio

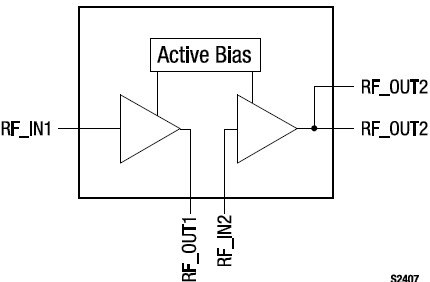

功能框图 Functional Block Diagram
|
