SKY72300-21 Spur-Free, 2.1 GHz Dual Fractional-N Frequency Synthesizer

SKYWORKS SKY72300-21 direct digital modulation fractional-N frequency synthesizer provides ultra-fine frequency resolution, fast switching speed, and low phase-noise performance. This synthesizer is a key building block for high-performance radio system designs that require low power and fine step size. The ultra-fine step size of less than 100 Hz allows this synthesizer to be used in very narrowband wireless applications. With proper temperature sensing or through control channels, the synthesizer’s fine step size can compensate for crystal oscillator or Intermediate Frequency (IF) filter drift. As a result, crystal oscillators or crystals can replace temperature-compensated or ovenized crystal oscillators, reducing parts count and associated component cost. The device’s fine step size can also be used for Doppler shift corrections. The SKY72300-21 has a phase noise floor of –90 dBc/Hz up to 2.1 GHz operation as measured inside the loop bandwidth. This is permitted by the on-chip low noise dividers and low divide ratios provided by the device’s high fractionality.

技术特性

Spur-free operation
2.1 GHz maximum operating frequency
500 MHz maximum auxiliary synthesizer
Ultra-fine step size, 100 Hz or less
High internal reference frequency enables large loop bandwidth
implementations
Very fast switching speed (e.g., below 100 􀁐s)
Phase noise to –91 dBc/Hz inside the loop filter bandwidth
@ 1800 MHz
Software programmable power-down modes
High-speed serial interface up to 100 Mbps
Three-wire programming
Programmable division ratios on reference frequency
Phase detectors with programmable gain to provide a
programmable loop bandwidth
Frequency power steering further enhances rapid acquisition time
On-chip crystal oscillator
Frequency adjust for temperature compensation

订购信息 Ordering Information

SKY72300-21

应用领域 APPLICATION

General purpose RF systems
2.5G and 3G wireless infrastructure
Broadband wireless access
Low bit rate wireless telemetry
Instrumentation
L-band receivers
Satellite communications

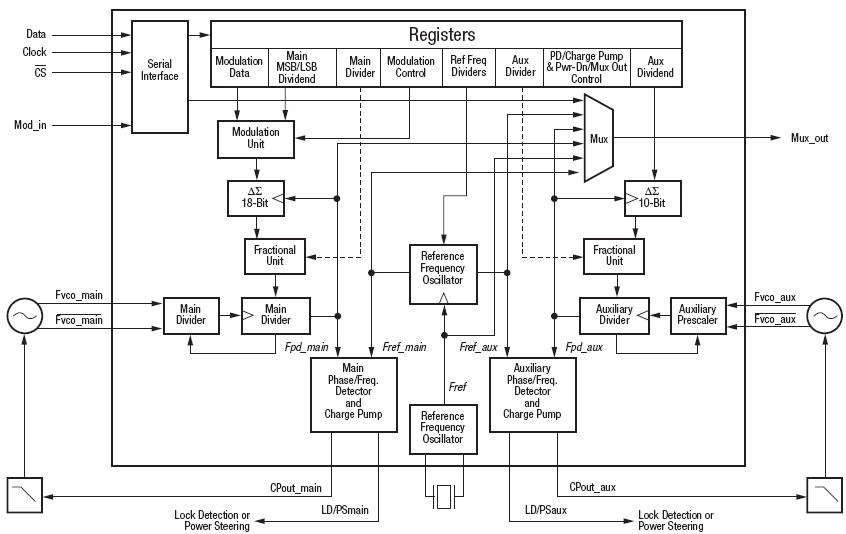

功能框图 Functional Block Diagram
