SKY72310-362LF Spur-Free, 2.1 GHz Single Fractional-N Frequency
Synthesizer
SKYWORKS SKY72310-362LF is a general purpose, broadband amplifier. The device is fabricated from SKYWORKS InGaP HBT process and packaged in a miniature Small Outline Transistor (SOT-89) package. The device’s 50 Ω input and output impedance allow it to be easily cascaded without external impedance matching networks. The typical –3 dB bandwidth of the SKY72310-362LF is 0.1 to 3.0 GHz. The amplifier is also available in a plastic micro-X package (SKY65016-214LF) and an SC-88 package (SKY65016-92LF).
技术特性
- Spur-free operation
- 2.1 GHz maximum operating frequency
- Ultra-fine step size, 100 Hz or less
- High internal reference frequency enables large loop bandwidth
implementations
- Very fast switching speed (e.g., below 100 μs)
- Phase noise to –91 dBc/Hz inside the loop filter bandwidth
@ 1800 MHz
- Software programmable power-down modes
- High-speed serial interface up to 100 Mbps
- Three-wire programming
- Programmable division ratios on reference frequency
- Phase detector with programmable gain to provide a
programmable loop bandwidth
- Frequency power steering further enhances rapid acquisition
time
- On-chip crystal oscillator
- Frequency adjust for temperature compensation
- 3 V operation
- 5 V output to loop filter
- QFN (24-pin, 4 x 4 mm) Pb-free (MSL3, 260 °C per JEDEC JSTD-
020) package
|
订购信息 Ordering Information
应用领域 APPLICATION
- General purpose RF systems
- 2.5G and 3G wireless infrastructure
- Broadband wireless access
- Low bit rate wireless telemetry
- Instrumentation
- L-band receivers
- Satellite communications

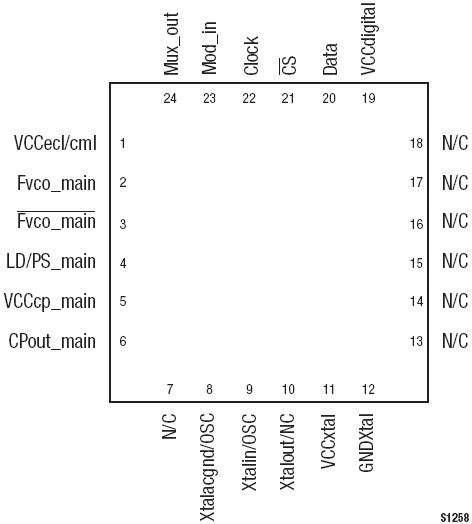

功能框图 Functional Block Diagram
|
