SKY73022-11 700 – 1000 MHz High Gain and Linearity Diversity Downconversion Mixer

The SKY73022-11 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers. Low loss RF baluns have also been included to reduce design complications and lower system cost. The SKY73022-11 features an input IP3 of +25.3 dBm and a Noise Figure (NF) of 9.0 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 53 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations.

技术特性

Operating frequency range: 700 to 1000 MHz
IF frequency range: 40 to 300 MHz
Conversion gain: 9.4 dB
Input IP3: +25.3 dBm
Output IP3: +34.7 dBm
Noise figure: 9.0 dB
Integrated LO drivers
Integrated low loss RF baluns
High linearity IF amplifiers
On-chip SPDT LO switch (greater than 53 dB LO-to-LO isolation)
Small, MCM (36-pin, 6 x 6 mm) Pb-free package (MSL3, 260 􀁱C
per JEDEC J-STD-020)

应用领域 APPLICATION

2G/3G base station transceivers:
GSM/EDGE, CDMA, UMTS/WCDMA, iDEN
Land mobile radio
ISM band transceivers
High performance radio links
RF identification

订购信息 Ordering Information

SKY73022-11

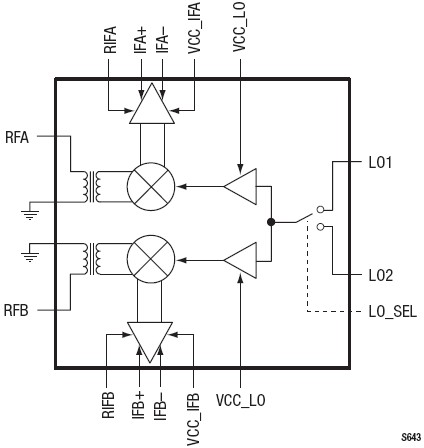

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY73022-11 数据资料DataSheet下载:pdf	Rev.V2	2 页
