SKY73025-11 2300 – 2700 MHz High Gain and Linearity Diversity Downconversion Mixer

The SKY73025 is a fully integrated diversity mixer that includes Local Oscillator (LO) drivers, an LO switch, high linearity mixers, and large dynamic range Intermediate Frequency (IF) amplifiers. Low loss RF baluns have also been included to reduce design complications and lower system cost. The SKY73025 features an input IP3 of +23.5 dBm and a Noise Figure (NF) of 9.8 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 45 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations.

技术特性

Operating frequency range: 2300 to 2700 MHz
IF frequency range: 50 to 500 MHz
Conversion gain: 8.6 dB
Input IP3: +23.5 dBm
Output IP3: +32.1 dBm
Noise Figure: 9.8 dB
Integrated LO drivers
Integrated low loss RF baluns
High linearity IF amplifiers
On-chip SPDT LO switch (greater than 45 dB LO-to-LO isolation)
Small, MCM (36-pin, 6 x 6 mm) Pb-free package (MSL3, 260 °C
per JEDEC J-STD-020)

应用领域 APPLICATION

2G/3G base station transceivers:
− GSM/EDGE, CDMA, UMTS/WCDMA
WiFi (802.11)
WiMAX (802.16)
3GPP long-term evolution
Land mobile radio
Wireless Local Loop
High performance radio links
Private mobile radio

订购信息 Ordering Information

SKY73025-11

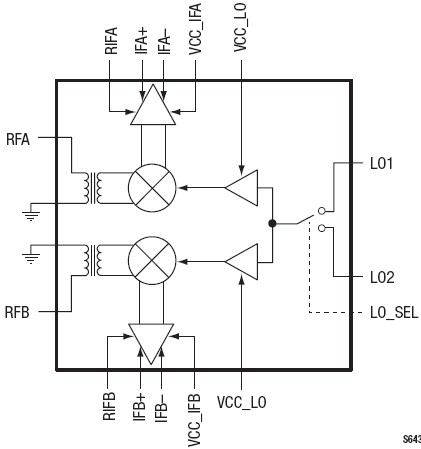

功能框图 Functional Block Diagram
