SKY73049-11 200-5000 MHz Single Downconversion Mixer
The SKY73049-11 is a fully integrated, wideband single mixer that includes Local Oscillator (LO) drivers, an RF input stage, and a high linearity mixer core. The SKY73049-11 features a power gain of 7 dB, a 3rd Order Input Intercept Point (IIP3) of +26 dBm, and a Noise Figure (NF) of 15 dB over a wide frequency range, which makes the device an ideal solution for multi-band 2G, 2.5G, 3G, and 4G base station transceivers.
技术特性
应用领域 APPLICATION
|
订购信息 Ordering Information

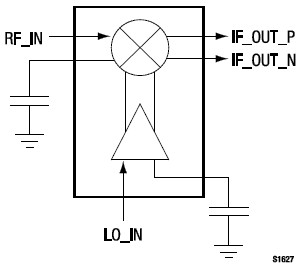

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SKY73049-11 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
