SKY73062-11 700 – 1000 MHz High Linearity, Single Up/Downconversion Mixer

The SKY73062-11 is a fully integrated up/downconversion mixer that includes a Local Oscillator (LO) driver, an LO switch, and a high linearity mixer. A low loss RF balun has also been included to reduce design complications and lower system cost. The SKY73062-11 features an input IP3 of +28.7 dBm and an insertion loss of 6.3 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides more than 40 dB of isolation between LO inputs and supports the switching time required for GSM/EDGE base stations.

技术特性
  • Operating frequency range: 700 to 1000 MHz
  • IF frequency range: 50 to 300 MHz
  • Insertion loss: 6.3 dB
  • Input IP3: +28.7 dBm
  • Noise Figure: 7.2 dB
  • Integrated LO driver
  • Integrated low loss RF balun
  • On-chip SPDT LO switch (greater than 40 dB LO-to-LO isolation)
  • Small, MCM (20-pin, 5 x 5 mm) package (MSL3, 260 °C per
    JEDEC J-STD-020)
应用领域 APPLICATION
  • 2G/3G base station transceivers:
    − GSM/EDGE, CDMA, UMTS/WCDMA
  • Wi-Fi (802.11)
  • WiMAX (802.16)
  • 3GPP Long-Term Evolution
  • Wireless Local Loop
  • High performance radio links
  • Land mobile radio
  • Private mobile radio
订购信息 Ordering Information
  • SKY73062-11

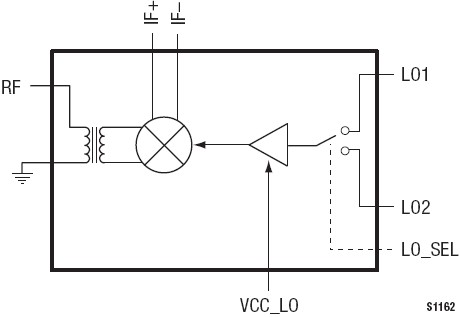

功能框图 Functional Block Diagram

SKY73062-11 功能框图
