SKY73063 1700 – 2100 MHz High Linearity, Single Up/Downconversion Mixer

The SKY73063-11 is a fully integrated up/downconversion mixer that includes a Local Oscillator (LO) driver, an LO switch, and a high linearity mixer. A low loss RF balun has also been included to reduce design complications and lower system cost. The SKY73063-11 features an input IP3 of +28 dBm and an insertion loss of 6.5 dB, making the device an ideal solution for high dynamic range systems such as 2G/3G base station receivers. The LO switch provides good isolation between LO inputs and supports the switching time required for GSM/EDGE base stations.

技术特性

Operating frequency range: 1700 to 2100 MHz
IF frequency range: 100 to 200 MHz
Insertion loss: 6.5 dB
Input IP3: +28 dBm
Noise Figure: 8.6 dB
Integrated LO driver
Integrated low loss RF balun
On-chip SPDT LO switch
Small, MCM (20-pin, 5 x 5 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

2G/3G base station transceivers:
− GSM/EDGE, CDMA, UMTS/WCDMA
Wi-Fi (802.11)
WiMAX (802.16)
3GPP Long-Term Evolution
Wireless Local Loop
High performance radio links
Land mobile radio
Private mobile radio

订购信息 Ordering Information

SKY73063

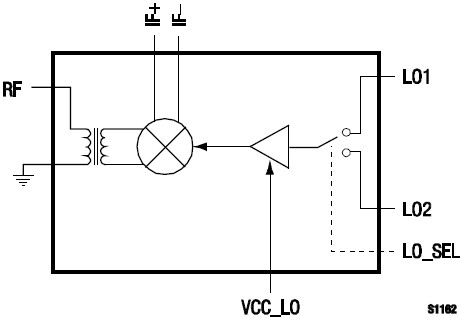

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY73063 数据资料DataSheet下载:pdf	Rev.V2	2 页
