SKY73121-11 1805–1890 MHz High Performance VCO/Synthesizer With Integrated Switch

SKYWORKS SKY73121-11 Voltage-Controlled Oscillator (VCO)/Synthesizer is a fully integrated, high performance signal source for high dynamic range transceivers. The device provides ultra-fine frequency resolution, fast switching speed, and low phase noise performance for 2G, 2.5G, and 3G base station transceivers. The SKY73121-11 VCO/Synthesizer is a key building block for high-performance radio system designs that require low power and a fine step size. Reference clock generators with an output frequency up to 52 MHz can be used with the SKY73121-11. A functional block diagram is shown in Figure 1. As indicated in this diagram, the reference frequency is divided down by 1, 2, 4, or 8 in the R1 divider, depending on the value of the reference divisor input (R1). Refer to the Reference Input Divider section (page 10) for more information.

技术特性
  • Frequency operation range: 1805 to 1890 MHz
  • Process-tolerant compensation for VCO
  • 24-bit 􀀶􀀧 fractional-N synthesizer
  • Ultra-fine frequency resolution of 0.001 ppm
  • Flexible reference frequency selection
  • Three-wire serial interface up to 20 MHz clock frequency
  • Integrated PLL supply regulation for spur isolation
  • MCM (38-pin, 9 x 12 mm) SMT package (MSL3, 260 􀁱C per
    JEDEC J-STD-020)
订购信息 Ordering Information
  • SKY73121-11
应用领域 APPLICATION
  • 2G, 2.5G, and 3G base station transceivers:
    GSM, EDGE, CDMA, WCDMA
  • General purpose RF systems
功能框图 Functional Block Diagram

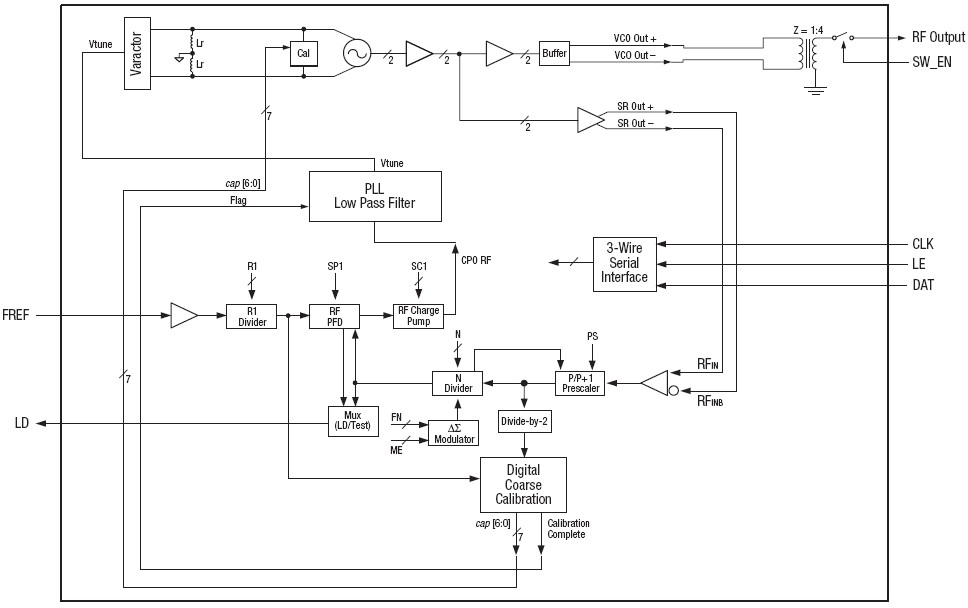

SKY73121-11 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY73121-11 数据资料DataSheet下载:pdf Rev.V2 2 页
