技术特性

• Sixth order Butterworth low-pass filter

• Exceptionally high dynamic range

• Auto-calibrated with clock reference, 20 MHz or 40 MHz nominal

• Programmable in steps from 1 to 28 MHz

• Nominal low-pass filter step size of 1 MHz

• Single or dual channel configuration

• Serial bus control

• Small QFN (32-pin, 5 x 5 mm) package (MSL3, 260 °C per JEDEC J-STD-020)

应用领域 APPLICATION

• High performance, direct conversion receivers

• Software-defined radio basebands

• High definition television tuners

• Medical imaging

• Flexible anti-aliasing and reconstruction filters

订购信息 Ordering Information

• SKY73201-364LF

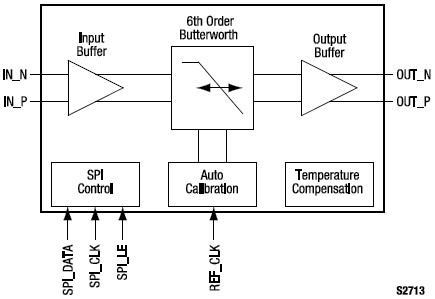

功能框图 Functional Block Diagram
