SKY74038-21 2.6 GHz/800 MHz Dual Fractional-N/lnteger-N Frequency Synthesizer

SKYWORKS SKY74038 is a complete, low-power 2.6 GHz/800 MHz dual frequency synthesizer. The device provides both Radio Frequency (RF) channels and Intermediate Frequency (IF) channels. Fractional-N operation offers low phase noise, fast settling time, and low spurious tones for RF channels. A standard integer-N division is used for IF channels. The three-wire serial interface provides programmable control of the frequency synthesizer to support dual-conversion transceivers.

技术特性
  • Maximum operating frequency: 2.6 GHz
  • Maximum IF synthesizer frequency: 800 MHz
  • Supply voltage as low as 2.6 V
  • Fast frequency settling time with fractional-N operation
  • Internal fractional spur reduction
  • Programmable charge pump currents
  • Digital lock detector
  • Power saving at lower frequency
  • Two package options, both 20-pin, 6.5 x 4.4 x 1.0 mm TSSOPs:
    − SKY74038-13 (MSL3, 225 °C per JEDEC J-STD-020)
    − SKY74038-21, Pb-free (MSL3, 260 °C per JEDEC J-STD-
    020)
订购信息 Ordering Information
  • SKY74038-21


应用领域 APPLICATION
  • Multi-slot GSM/DCS
  • PCS/W-CDMA
  • Portable communication systems
  • Dual-mode cellular telephone systems
  • Spread spectrum receivers
  • Wireless LAN systems
  • Wireless routers and WLL systems
  • SATCOM receivers

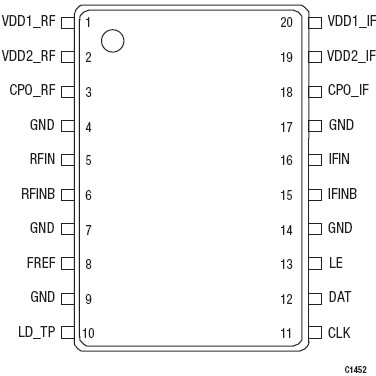

功能框图 Functional Block Diagram

SKY74038-21 功能框图
