SKY77336 Power Amplifier Module for Quad-Band GSM / GPRS / EDGE

SKY77336 Power Amplifier Module (PAM) is designed in a compact form factor for quad-band cellular handsets comprising GSM850/900, DCS1800 and PCS1900, supporting Gaussian Minimum-Shift Keying (GMSK) and Polar Enhanced Data for GSM Evolution (EDGE) modulation. Class 12 General Packet Radio Service (GPRS) multi-slot operation is also supported. The module consists of GSM850/900 PA and DCS1800/PCS1900 PA blocks, impedance matching circuitry for 50 Ω input and output impedances, and a Power Amplifier Control (PAC) block. The custom CMOS integrated circuit provides the internal PAC function and interface circuitry. Fabricated in InGaP/GaAs, the Heterojunction Bipolar Transistor (HBT) PA blocks support the GSM850/900 bands and DCS1800/PCS1900 bands. Both PA blocks share common power supply pads to distribute current. The InGaP/GaAs die, Silicon (Si) controller die, and passive components are mounted on a multi-layer laminate substrate and the entire assembly is encapsulated with plastic overmold. RF input and output ports of the SKY77336 are internally matched to a 50 Ω load to reduce the number of external components for a quad-band design. Extremely low leakage current (10 μA, typical) of the PAM module maximizes handset standby time. The SKY77336 also contains band-select switching circuitry to select GSM (logic 0) or DCS/PCS (logic 1) as determined from the Band Select (BS) signal. See Figure 1 shown below.

技术特性
  • High efficiency:
    - GSM850, 52%
    - GSM900, 52%
    - DCS, 50%
    - PCS, 50%
  • Small outline
    - 5 x 5 mm
  • Low profile
    - 0.9 mm, max
  • Low VRAM
订购信息 Ordering Information
  • SKY77336



应用领域 APPLICATION
  • Quad-band cellular handsets
  • GMSK Modulation
    - Class 4 GSM850/900
    - Class 1 DCS1800/PCS1900
    - Class 12 GPRS multi-slot operation
  • EDGE modulation
    - Class E2 GSM850/900
    - Class E2 DCS1800/PCS1900

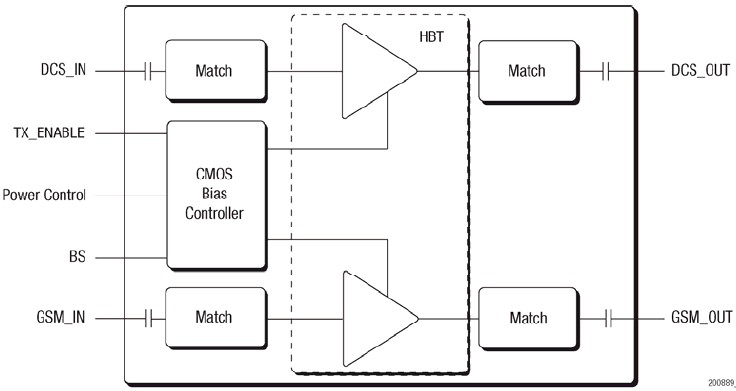

功能框图 Functional Block Diagram

SKY77336 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY77336 数据资料DataSheet下载:pdf Rev.V2 2 页
