SKY77435 SKY77435 Front-End Module for WCDMA / HSDPA / HSUPA (Tx 1710-1770 MHz), (Rx 2110-2170 MHz)

The SKY77435 Front-End Module (FEM) is a fully matched, 16-pad surface mount module developed for WCDMA applications. Small and efficient, this WCDMA FEM integrates the interstage filter, the input matching, the power amplifier, the output matching, the power detection, and the duplexer into a single 7 mm x 4 mm x 1.1 mm package. The SKY77435 meets the stringent spectral requirements of HSDPA standards up to 25.2 dBm output power. The FEM incorporates an InGaP HBT PA and contains circuitry to optimize power detector performance. Different control pads are available to enhance the performance of the FEM at different power levels. Integration of the RF front-end greatly simplifies the design of the handset radio as all critical matching between the interstage filter, PA, power detection, and duplexer is optimized within the module. By optimizing the efficiency of the InGaP HBT PA MMIC and reducing the RF loss between the integrated components, this FEM achieves current as low as 450 mA at maximum output power (25.2 dBm) that significantly improves the talk time of the WCDMA handset. This small package uses SKYWORKS’ low cost, multi-laminate substrate technology and is approximately half the size of individually packaged component solutions. The SKY77435 front-end module can save handset designers significant board space and design-cycle time.

技术特性
  • High Speed Downlink Packet Access (HSDPA)
  • High Speed Uplink Packet Access (HSUPA)
  • Low quiescent current
    - 20 mA
  • Low current consumption
    - 530 mA
  • Integrated Power Detector
  • 16-pad package
  • Small profile
    - 7 mm x 4 mm x 1.1 mm
  • Low voltage
    - 3.1 V–4.45 V
  • Digital enable pad
  • Highly integrated, user friendly solution
  • InGaP HBT
  • Integrated interstage filter and duplexer
  • Requires few external components
应用领域 APPLICATION
  • Digital cellular (WCMDA) handsets
订购信息 Ordering Information
  • SKY77435

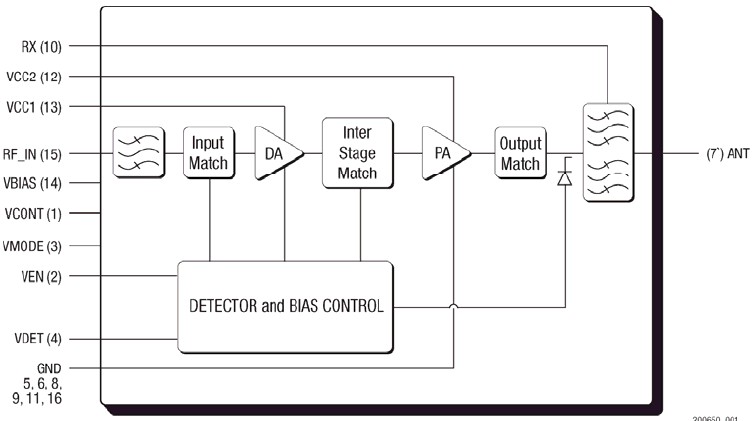

功能框图 Functional Block Diagram

SKY77435 功能框图
