SKY77546 Tx–Rx Front-End Module for Dual-Band GSM / GPRS / EDGE
The SKY77546 is a transmit and receive Front-End Module (FEM) designed in a compact form factor for dual-band cellular handsets comprising GSM900 and DCS1800 operation. The SKY77546 offers a complete Transmit VCO-to-Antenna and Antenna-to-Receive SAW filter solution that supports Class 12 General Packet Radio Service (GPRS) multi-slot operation and EDGE operation for handsets and modules. The module consists of a GSM900 PA block and a DCS1800 PA block, impedance-matching circuitry for 50 Ω input and output impedances, TX harmonics filtering, high linearity and low insertion loss RF switches, and a Power Amplifier Control (PAC) block. A custom CMOS integrated circuit provides the internal PAC function, external interface circuitry, and decoder circuitry to control the RF switches. The integrated PAC function provides envelope amplitude control by reducing sensitivity to input drive, temperature, power supply, and process variations. The Heterojunction Bipolar Transistor (HBT) PA blocks are fabricated onto a single InGaP/GaAs die. One PA block supports the GSM900 band and the other PA block supports the DCS1800 band. Both PA blocks share common power supply pads to distribute current. The output of each PA block and the outputs to the two receive pads are connected to the antenna pad through a diplexer and SP2T switch. The GaAs die, switch die, Silicon (Si) die, and passive components are mounted on a multi-layer laminate substrate. The assembly is encapsulated with plastic overmold.
技术特性
订购信息 Ordering Information
|
应用领域 APPLICATION

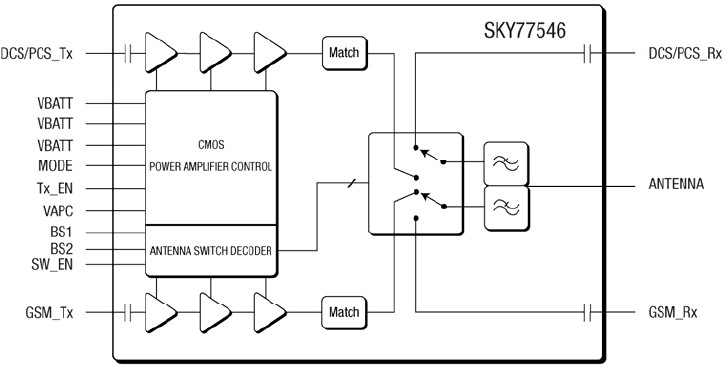

功能框图 Functional Block Diagram
|
