SKY77601 Multi-Mode, Multi-Band Power Amplifier Module for Next Generation GGE and HSPA Handsets

SKYWORKS SKY77601 is a hybrid multi-mode, multi-band Power Amplifier Module (PAM). The device is intended to support 2.5G and 3G handsets and operates efficiently in GSM, EGPRS, EDGE WCDMA modes. For 2.5G, the SKY77601 supports the GSM850, EGSM900, DCS1800, and PCS1900 bands. The device also supports 2.5G Class 12 Enhanced General Packet Radio Service (EGPRS) multislot operation and EDGE linear modulation. For 3G, the PAM uses Load Insensitive Power Amplifier (LIPA®) circuitry to support WCDMA, High-Speed Downlink Packet Access (HSDPA), and High-Speed Uplink Packet Access (HSUPA) modulation at a high antenna Voltage Standing-Wave Ratio (VSWR). This functionality covers multiple bands for 3GPP including bands I, II, V, and VIII. RF input and output ports are internally matched to 50 Ω to reduce the number of external components. Extremely low leakage current maximizes handset standby time. The InGaP die, the silicon die, and passive components are mounted on a multi-layer laminate substrate. The assembly is encapsulated with plastic overmold. The device is mounted in a 34-pin, 6 x 8 mm MCM Surface- Mounted Technology (SMT) package, which allows for a highly manufacturable low-cost solution. A block diagram of the SKY77601 is shown in Figure 1. The device package and pinout for the 34-pin MCM are shown in Figure 2.

技术特性
  • Hybrid architecture: separate GSM and WCDMA paths
  • Separate single-ended GSM and WCDMA inputs/outputs, all ACcoupled
  • Multiplexed voltage detector for all modes/bands provided to
    transceiver
  • Fully programmable serial bus interface
  • Final VCC stage for 2.5G/3G can be attached to battery or buck
    DC/DC
  • Driver stage for 3G can be attached to battery or buck DC/DC
  • 2.5G features:
    - EGPRS Class 12 multi-slot operation
    - Log power detector
    - Linear PA with bias optimization for efficiency/linearity tradeoff
    in 8-PSK mode
  • 3G features:
    - WCDMA mode supports output power and bandwidth for
    bands I, II, V, and VIII
    - Linear detector
    - Linear balanced with bias optimization and low/high mode
    gain switch for best efficiency/linearity trade-off
  • Small footprint, MCM (34-pin, 6 x 8 mm) Pb-free (MSL3, 260 °C
    per JEDEC J-STD-020) SMT package
应用领域 APPLICATION
  • Quad-band cellular handsets:
    - Class 4 GSM850/EGSM900
    - Class 1 DCS1800/PCS1900
    - Class E2 GSM850/EGSM900
    - Class 12 multi-slot EGPRS
  • Multi-band 3G handsets
  • WCDMA/HSDPA/HSUPA-modulated handsets for bands I, II, V, and VIII
订购信息 Ordering Information
  • SKY77601
功能框图 Functional Block Diagram

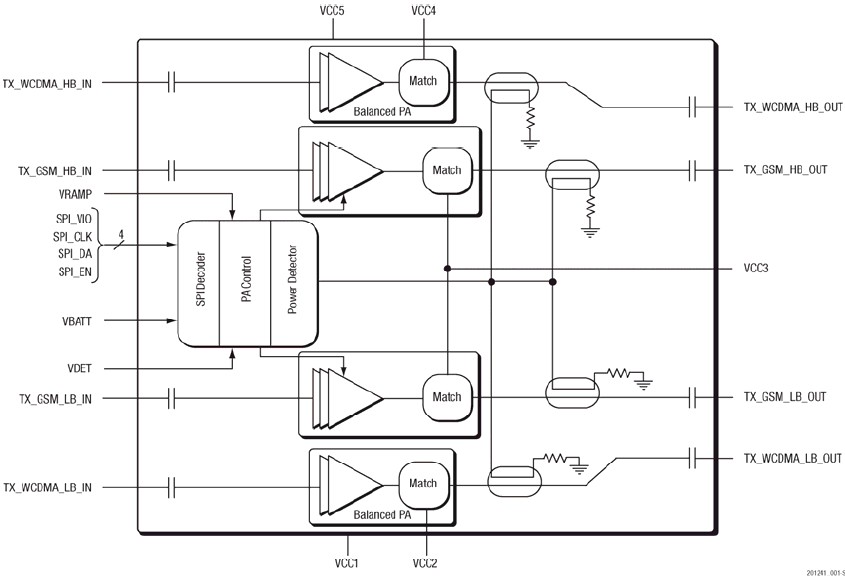

SKY77601 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKY77601 数据资料DataSheet下载:pdf Rev.V2 2 页
