SKY77710 Power Amplifier Module for CDMA(824 MHz–849 MHz)
The SKY77710 System Smart® Power Amplifier Module (PAM) is a fully matched, 8-pad, surface mount module developed for Code Division Multiple Access (CDMA), Advanced Mobile Phone Service (AMPS) and Wireless Local Loop (WLL) applications in the 824–849 MHz bandwidth. This small and efficient module packs full bandwidth coverage into a single compact package. The SKY77710 meets the stringent IS95 CDMA linearity requirements to and exceeding 28 dBm output power, and can be driven to levels beyond 31 dBm for high efficiency in FM mode operation. A low current pad (VCONT) provides improved efficiency for the low RF power range of operation. The single Gallium Arsenide (GaAs) Microwave Monolithic Integrated Circuit (MMIC) contains all active circuitry in the module. The MMIC contains on-board bias circuitry, as well as input and interstage matching circuits. The output match is realized off-chip and within the module package to optimize efficiency and power performance into a 50-ohm load. This device is manufactured with SKYWORKS’ GaAs Heterojunction Bipolar Transistor (HBT) process that provides for all positive voltage DC supply operation while maintaining high efficiency and good linearity. Primary bias to the SKY77710 is supplied directly from a three-cell Ni-Cd, a single-cell Li-Ion, or other suitable battery with an output in the 3.2 to 4.2 volt range. Power down is accomplished by setting the voltage on the low current reference pad to zero volts. No external supply side switch is needed as typical “off” leakage is a few microamperes with full primary voltage supplied from the battery.
技术特性
|
应用领域 APPLICATION
订购信息 Ordering Information

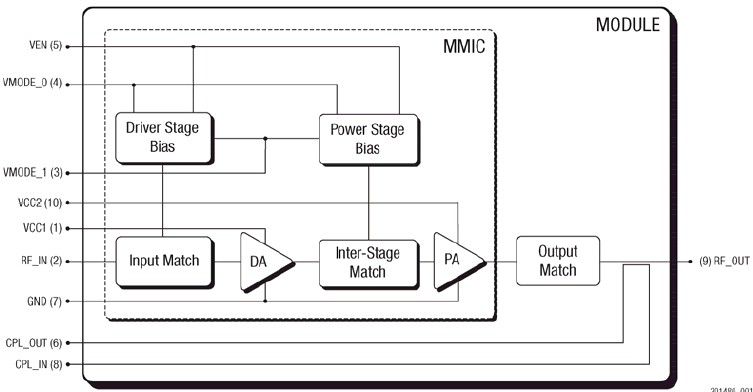

功能框图 Functional Block Diagram
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SKY77710 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
