SKY77712 Power Amplifier Module for TD-SCDMA(1880–1920 MHz, 2010-2025 MHz)

The SKY77712 Power Amplifier Module (PAM) is a fully matched, 10-pad, surface mount module developed for Time Division Synchronous Code Division Multiple Access (TD-SCDMA) applications. SKYWORKS’ SKY77712 also supports TD-SCDMA multi-slot operation. This small and efficient module packs full 1880–1920 MHz and 2010-2025 MHz bandwidth coverage into a single compact package. The PAM meets the stringent spectral linearity requirements of TD-SCDMA transmission, with high power added efficiency for power output of up to 28 dBm. A single Gallium Arsenide (GaAs) Microwave Monolithic Integrated Circuit (MMIC) contains all active circuitry in the module such as on-board bias circuit and input and interstage matching circuits. Output match is realized off-chip within the module package to optimize efficiency and power performance into a 50 Ω load. This device is manufactured with SKYWORKS’ InGaP GaAs Heterojunction Bipolar Transistor (HBT) BiFET process that provides for all positive voltage DC supply operation while maintaining high efficiency and good linearity. Power-down is accomplished by setting the voltage on VENABLE to zero volts. No external supply side switch is needed as typical “off” leakage is a few microamperes with full primary voltage supplied from the battery.

技术特性

Low voltage positive bias supply 3.2 V to 4.2 V
Supports low collector voltage operation
Good linearity
High efficiency
40% @ 28 dBm
Large dynamic range
Small, low profile package
- 3 mm x 3 mm 0.9 mm
- 10-pad configuration
Power-down control
Low power-state control
InGaP
CMOS Compatible Control
Integrated Directional Coupler

应用领域 APPLICATION

TD-SCDMA handsets

订购信息 Ordering Information

SKY77712

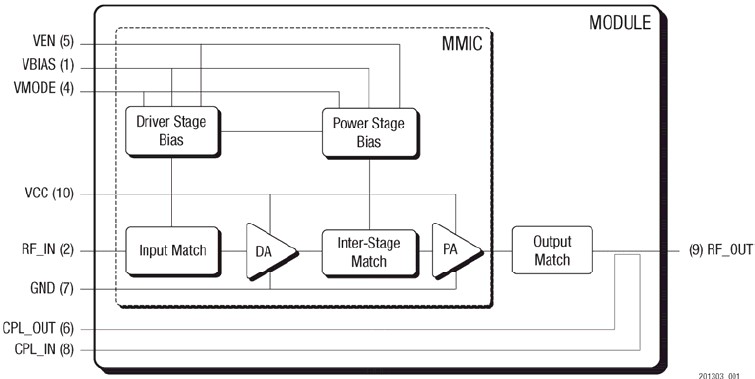

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY77712 数据资料DataSheet下载:pdf	Rev.V2	2 页
