SKY77761-12 Power Amplifier Module for CDMA/ WCDMA/ HSDPA/ HSUPA/ HSPA+/ LTE –Band I (1920–1980 MHz)

The SKY77761-12 Power Amplifier Module (PAM) is a fully matched 10-pad surface mount module developed for Wideband Code Division Multiple Access (WCDMA) applications. This small and efficient module packs full 1920-1980 MHz bandwidth coverage into a single compact package. Because of high efficiencies attained throughout the entire power range, the SKY77761-12 delivers unsurpassed talk-time advantages. The SKY77761-12 meets the stringent spectral linearity requirements of High Speed Downlink Packet Access (HSDPA), High Speed Uplink Packet Access (HSUPA), and Long Term Evolution (LTE) data transmission with high power added efficiency. An integrated directional coupler eliminates the need for any external coupler. The Gallium Arsenide (GaAs) Microwave Monolithic Integrated Circuit (MMIC) contains all amplifier active circuitry, including input and interstage matching circuits. The silicon CMOS support die, providing precision biasing for the MMIC affords a true CMOS-compatible control interface. Output match into a 50-ohm load, realized off-chip within the module package, optimizes efficiency and power performance. The SKY77761-12 is manufactured with SKYWORKS’ InGaP GaAs Heterojunction Bipolar Transistor (HBT) process which provides for all positive voltage DC supply operation and maintains high efficiency and good linearity. While primary bias to the SKY77761-12 can be supplied directly from any suitable battery with an output of 3.2 V to 4.2 V, optimal performance is obtained with VCC2 sourced from a DC-DC power supply adjusted within 0.5 V to 3.6 V based on target output power levels. Power down executes by setting VENABLE to zero volts. No external supply side switch is needed as typical “off” leakage is a few microamperes with full primary voltage supplied from the battery.

技术特性

Low voltage positive bias supply 3.0 V to 4.5 V
Good linearity
High efficiency
- 46% at 28.25 dBm
Large dynamic range
Small, low profile package
- 3 mm x 3 mm x 0.9 mm
- 10-pad configuration
Power down control
InGaP
Supports low collector voltage operation
Digital Enable
No VREF required
CMOS compatible control signals
Integrated Directional Coupler

订购信息 Ordering Information

SKY77761-12

应用领域 APPLICATION

WCDMA handsets
HSDPA
HSUPA
HSPA+
LTE
CDMA2000
EVDO

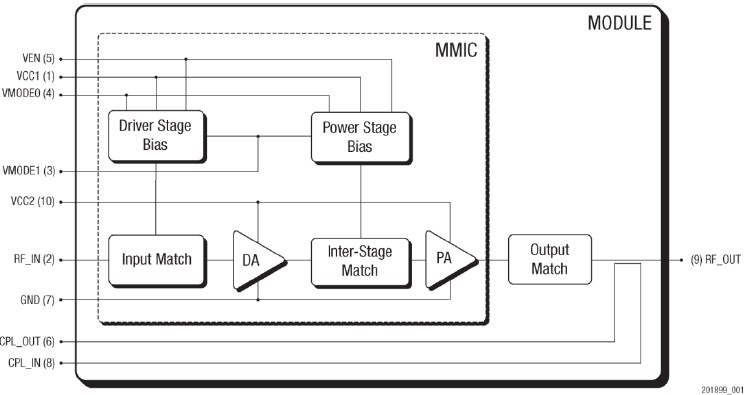

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SKY77761-12 数据资料DataSheet下载:pdf	Rev.V2	2 页
