SKYFR-000827 2300-2400 MHz Single Junction Robust Lead Circulator

The SKYFR-000827 is a single-junction, surface mount circulator designed for wireless infrastructure applications. It operates over the frequency range of 2300 MHz to 2400 MHz. Insertion loss is less than 0.15 dB over an operating temperature range of –40 °C to +105 °C. The SKYFR-000827 comes in an industry-standard surface mount package and is designed for automated SMT placement.

技术特性
  • BeO free
  • Very low insertion loss
  • Small, surface mount package
  • Operating frequency range: 2300 MHz to 2400 MHz
  • Parts delivered on tape and reel

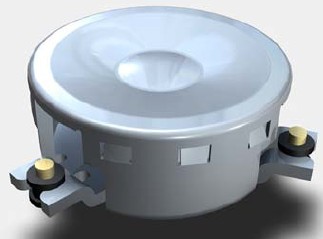

SKYFR-000827 实物图

SKYFR-000827 实物图

应用领域 APPLICATION
  • Wireless infrastructure
  • Power amplifiers
订购信息 Ordering Information
  • SKYFR-000827

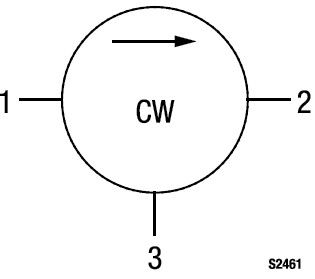

功能框图 Functional Block Diagram

SKYFR-000827 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SKYFR-000827 数据资料DataSheet下载:pdf Rev.V2 2 页
