SMP1302_Series Switch and Attenuator Plastic Packaged PIN Diodes
The SMP1302 series of plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diodes is designed for high-volume switch and attenuator applications from 10 MHz to beyond 10 GHz. These diodes are designed for use in low-distortion PI and TEE attenuators with low drive current (maximum resistance at 1 mA is 10 Ω) commonly used in TV distribution and cellular base station applications. The nominal 50 μm I region width, combined with a maximum resistance of 3 Ω at 10 mA, makes these diodes useful in large signal switch applications. The SMP1302 series provides single, dual, and quad diodes in a selection of plastic packages including SOT-23, SOD-323, SC-79, an ultralow inductance (0.2 nH) SOT-143 (SMP1302-017), SC-70, SC-88, and a small footprint SOD-882. A four-diode array is available in an SOT-5 package (SMP1302-027) designed for insertion in the commonly used four-diode PI attenuator circuits.
技术特性
订购信息 Ordering Information
应用领域 APPLICATION
|

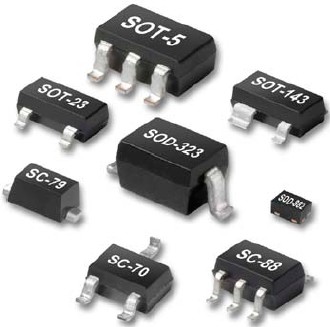

SMP1302 Series实物图
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SMP1302_Series 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
