SMP1304_Series Low-Distortion Attenuator Plastic Packaged PIN Diodes
The SMP1304 series of plastic packaged, surface mountable, low capacitance (0.3 pF) silicon PIN diodes is designed for attenuator applications from 5 MHz to beyond 2 GHz. The thick 100 μm I region of these PIN diodes makes them very attractive for use in low-distortion PI and TEE attenuators commonly found in TV distribution applications. The 1 μs typical carrier lifetime of these diodes results in a resistance of 20 Ω maximum at 1 mA and 7 Ω maximum at 10 mA. The SMP1304 series is available in a selection of plastic packages: as a single diode in small footprint SOD-323 and SC-79 packages, and in a variety of configurations in an SOT-23 package, including the low inductance (0.4 nH) SMP1304-007. The SMP1304-019, a three-diode junction designed for insertion in PI attenuators, is available in an SOT-143 package. The SMP1304-027 is available in an SOT-5 package as a four-diode array designed for insertion in commonly used four-diode PI attenuator circuits.
技术特性
订购信息 Ordering Information
应用领域 APPLICATION
|

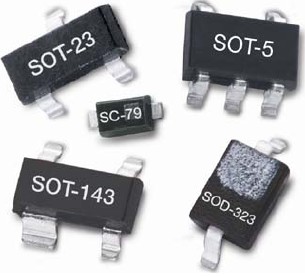

SMP1302 Series实物图
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SMP1304_Series 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
