SMP1322_Series Low Resistance, Plastic Packaged PIN Diodes

The SMP1321 series of plastic packaged, surface mountable PIN diodes is designed for use in high volume switch applications from 10 MHz to more than 10 GHz. The low capacitance of these diodes (0.25 pF), combined with a low resistance (2.0 Ω maximum at 10 mA), makes the SMP1321 series particularly suited to high isolation, series-connected PIN diode switches in battery operated circuits.

技术特性
  • Resistance: 0.8 Ω typical @ 1 mA
  • Packages rated MSL1, 260 °C per JEDEC J-STD-020)
应用领域 APPLICATION
  • High-performance wireless switch applications
订购信息 Ordering Information
  • SMP1322_Series

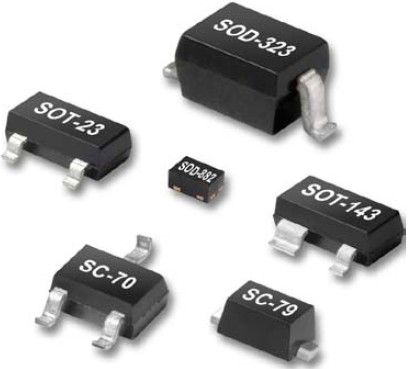

SMP1322_Series 实物图

SMP1322_Series 实物图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SMP1322_Series 数据资料DataSheet下载:pdf Rev.V2 2 页
