SMP1324-087LF Surface Mount PIN Diode

The SMP1324-087LF is a surface mountable PIN diode suitable for use in an RF switch or attenuator circuit. Maximum resistance at 50 mA is 0.75 Ω and maximum capacitance at 30 V is 1.5 pF. The combination of low capacitance, low parasitic inductance, low thermal resistance, and nominal 100 μm I-region width, makes the SMP1324-087LF useful in large signal switches and attenuator applications. The device has a 2 W dissipation power rating, which makes it capable of handling up to 50 W Continuous Wave (CW) and 500 W peak (1 μs pulse, 1 percent duty cycle) in a shunt-connected transmit/receive (T/R) switch.

技术特性 Low-series resistance: 0.75 Ω maximum @ 50 mA Low total capacitance: 1.5 pF maximum @ 30 V Excellent thermal resistance: 40 °C/W typical QFN (2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020) 应用领域 APPLICATION Switches Attenuators 订购信息 Ordering Information SMP1324-087LF

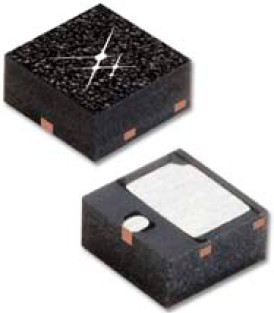

SMP1324-087LF 实物图

应用技术支持与电子电路设计开发资源下载	版本信息	大小
SMP1324-087LF 数据资料DataSheet下载:pdf	Rev.V2	2 页
