SMP1325-085LF Surface Mount PIN Diode for High Power Switch Applications

The SMP1325-085LF is a surface mountable, low capacitance silicon PIN diode designed as a shunt connected PIN diode for high power, high volume switch and attenuator applications from 10 MHz to beyond 6 GHz. Maximum resistance at 100 mA is 0.5 Ω and maximum capacitance at 20 V is 0.65 pF. The combination of low junction capacitance, low parasitic inductance, low thermal resistance, and nominal 100 μm I-region width, makes the SMP1325-085LF useful in large signal switches and attenuator applications.

技术特性
  • Low-thermal resistance: 40 °C/W
  • Suitable for 50 W Continuous Wave T/R switches
  • Low capacitance: 0.56 pF typical @ 20 V
  • Low distortion performance
  • QFN (3-pin, 2 x 2 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
应用领域 APPLICATION
  • Low loss, high power switches
  • Low distortion attenuators
订购信息 Ordering Information
  • SMP1325-085LF

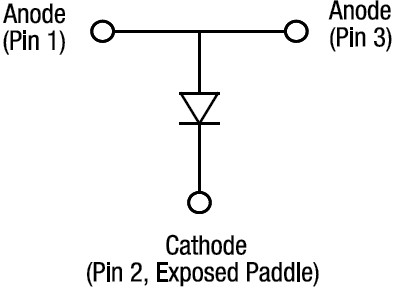

功能框图 Functional Block Diagram

SMP1325-085LF 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
SMP1325-085LF 数据资料DataSheet下载:pdf Rev.V2 2 页
