SMP1345_Series Very Low Capacitance, Plastic Packaged Silicon PIN Diodes
The SMP1345 series of plastic packaged, surface mountable PIN diodes is designed for high volume Low-Noise Block (LNB), Wireless Local Area Network (WLAN), and switch applications from 10 MHz to 6 GHz. The short carrier lifetime of 100 ns (typical), combined with their thin I-region width of 10 μm (nominal) results in a group of fast speed RF switching PIN diodes. The RF performance of the SMP1345 series is assured by virtue of their very low capacitance (0.15 pF) and low resistance (1.5 Ω at 10 mA). The SMP1345-518 has been specifically designed for WLAN 802.11 a/b/g applications. It is ideally suited for diversity switch applications.
技术特性
应用领域 APPLICATION
订购信息 Ordering Information
|

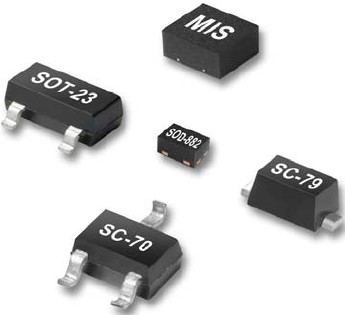

SMP1345_Series 实物图
|
| 应用技术支持与电子电路设计开发资源下载 | 版本信息 | 大小 |
| SMP1345_Series 数据资料DataSheet下载:pdf | Rev.V2 | 2 页 |
