SMS392x_Series Surface Mount General Purpose Schottky Diodes
The SMS3922, SMS3923, and SMS3924 series of 8, 20, and 70 V rated, low-cost plastic packaged Schottky diodes are designed for general purpose use in RF applications. All diodes are fully characterized, including SPICE model parameters, and deliver tight parameter distribution, which minimizes performance variability. Wiring configurations include singles, common cathode, series pairs, unconnected pairs, and dual series pairs. The SMS392x series of diodes may be used at frequencies up to 6 GHz.
技术特性
- Tight parameter distribution
- Available as singles, pairs, and dual series pairs
- 100 percent DC tested
- Packages rated MSL1, 260 °C per JEDEC J-STD-020
应用领域 APPLICATION
- High volume commercial detectors, mixers, switches, and digital pulse forming systems
|
订购信息 Ordering Information

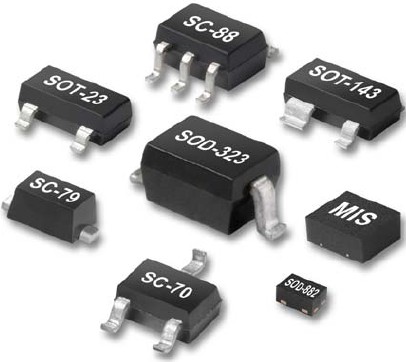

SMS392x_Series 实物图
|
