DSILC6-4xx ESD Protection for high speed interface
The DSILC6-4xx is a monolithic application specific discrete dedicated to ESD protection of high speed interfaces, such as USB 2.0, Ethernet, display and camera serial interfaces (LVDS).
The device is ideal for applications where both reduced printed circuit board space and power absorption capability are required
技术特性
- Very low capacitance: 1 pF typ.
|

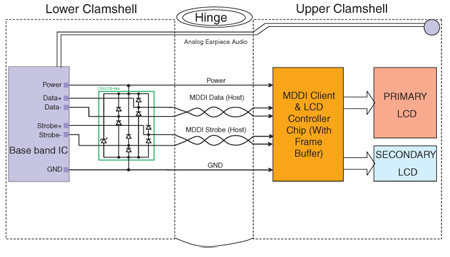

功能框图
 |
DSILC6-4xx 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| DSILC6-4F2 |
Active |
0.262 |
1000 |
Flip-Chip 500u |
Tape And Reel |
|
DSILC6-4F2 |
| DSILC6-4P6 |
Active |
0.262 |
1000 |
SOT-666 |
Tape And Reel |
|
DSILC6-4P6 |
DATASHEET
| 描述 |
版本 |
大小 |
| DSILC6-4xx : ESD Protection for high speed interface |
3 |
357KB |
FLYERS
| 描述 |
版本 |
大小 |
| FLESDLIN1006 : ESD protection for LIN nodes |
1.0 |
656KB |
