FLI30436 Single-chip dual-channel LCD TV controller

The FLI30436 chip offers high integration for advanced, dual-channel applications of Picture-in-Picture (PIP) and Picture-by-Picture (PBP). Two video decoders with 3D comb filters and two channels of DCDi processing provide the highest quality picture for a twochannel application. In addition, the FLI30436 can power up to 1080p/WUXGA displays.

True 10-bit performance throughout the device, Advanced Color Management (ACM-3D), and DDR memory with picture data capacity of 10 bpp provide an exceptionally high level of video quality. This exclusive level of video quality technology previously seen on Faroudja Home Theater Systems is now available in a single-chip solution.

The FLI30436 also comprises an integrated Analog Front-End (AFE) that includes two Triple ADCs, an integrated cross-point switch, and two Faroudja Intellicomb™ 3D comb filters. The flexible AFE ensures simple PCB design with direct connections to TV tuners and input video connectors. In essence, the FLI30436 is the only device needed for a single LCD TV chassis supporting worldwide standards. For regional variations, only connector and firmware changes are required.

The integrated VBI dataslicer and decoder remove the need for external components resulting in significant cost reduction. The FLI30436 supports many worldwide VBI standards for applications of Teletext, Closed Captioning, V-Chip, and other VBI services.

An embedded microprocessor and a versatile OSD in a single device will facilitate rapid development of a reliable and attractive product. The FLI30436 utilizes the common Cortez family firmware for easy and effortless migration across different hardware platforms within this family.

技术特性

True 10-bit processing
Integrated 3D video decoder
Second integrated 3D video decoder available
Flexible digital capture up to 165 MHz and analog capture up to 162 MHz
Next generation 10-bit Faroudja DCDi Cinema® format conversion
VBI signal processing including WST version 2.5 support
Flexible DDR memory interface with 10-bit video processing
Faroudja® TrueLife™ video enhancer
Advanced Picture-in-Picture (PIP) features
10-bit Advanced Color Management (ACM-3D) and Adaptive Contrast Control (ACC)
On-chip microprocessor
Advanced bitmapped OSD controller
LCD overdrive
Embedded 10-bit dual-channel LVDS for 1080p and WUXGA panel support
Package: 416 PBGA

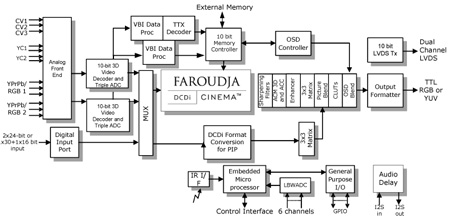

功能框图

FLI30436 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI30436-AC	NRND			PBGA 416 35x35x2.46	Tray		FLI30436-AC

DATA BRIEF

描述	版本	大小
FLI30436 :Single-chip dual-channel LCD TV controller	1	119KB

FLYERS

描述	版本	大小
Faroudja Video Optimized calibration program	1.0	1066KB
