FLI5962H Multi-function LCD monitor controllers up to WUXGA

The FLI59xx family of controllers are highly integrated mixed signal LCD controllers for multi-function LCD monitors and LCD TV applications supporting up to WUXGA resolutions.

The FLI59xx has integrated advanced video image processing from Faroudja as well as a proven ADC/PLL and Ultra-Reliable DVI or HDMI 1.1 compatible digital receiver with FRC to ensure proven PC graphics compatibility.

With Emmy award winning Faroudja DCDi® technology incorporating horizontal enhancement technology, advanced TV color control with Adaptive Contrast and Color (ACC) and Active Color Management-3D (ACM-3D), in addition to industry leading Motion Adaptive De-interlacing (MADi), advanced film mode detection, and response time compensation, the FLI59xx processes SDTV inputs to output images that are crisper with life-like quality.

The integrated picture-in-picture, embedded microcontroller, versatile OSD engine, low bandwidth general purpose ADC, and dual LVDS transmitters (or optional 24-bit TTL output) enables cost-effective HDTV-ready multi-function LCD monitor or LCD TV solutions.

The FLI59xx family of controllers includes the following products:

FLI5962 supports up to 1920 x 1200 resolutions with DVI

FLI5962H supports up to 1920 x 1200 resolutions with DVI and HDCP

FLI5968H supports up to 1920 x 1200 resolutions with HDMI and HDCP

FLI5928H supports up to 1366 x 768 resolutions with HDMI and HDCP

技术特性

Triple ADC and PLL up to 205 MHz
Integrated Ultra-Reliable DVI® receiver up to 165 MHz (FLI5962 and FLI5922)
Integrated HDMI 1.1 receiver up to 165 MHz (FLI5968H and FLI5928H)
HDCP supported with FLI59xxH versions
ITU656 video input
ITU601 (16-bit) video input
Variable PIP window up to 640 x 480
DCDi Edge® processing
MADi, film mode detection, temporal noise reduction and cross color suppression for SDTV
Response Time Compensation (RTC)
Frame Rate Conversion (FRC)
Panoramic scaling for wide output resolutions
TV color controls using ACC and ACM-3D
Faroudja® Truelife™ horizontal enhancements
Versatile OSD controller for high quality bitmap-like TV OSD
Embedded x86 microprocessor with external SPI Flash ROM
Dual LVDS transmitter for direct interconnect to LCD panels up to WUXGA 60 Hz
Package: 256 PQFP

应用领域

Multi-function LCD monitors up to WUXGA resolutions
Mid-range LCD TVs with PC and HDTV connectivity

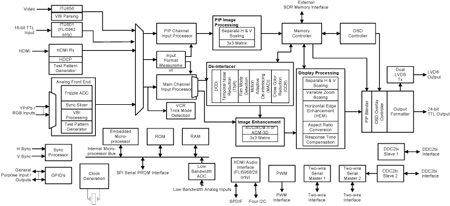

功能框图

FLI5962H 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
FLI5962H-LF-AA	NRND			PQFP 256 28x28x3.4	Tray		FLI5962H-LF-AA

DATA BRIEF

描述	版本	大小
FLI5962H :Multi-function LCD monitor controllers up to WUXGA	2	116KB

FLYERS

描述	版本	大小
Faroudja Video Optimized calibration program	1.0	1066KB
