HSP061-8M16 8-line ESD protection for high speed lines

The HSP061-8M16 is an 8-channel ESD array with a rail to rail architecture designed specifically for the protection of high speed differential lines.

The ultra-low variation of the capacitance ensures very low influence on signal-skew. The large bandwidth and the low reflection make it compatible with 3.4 Gbps.

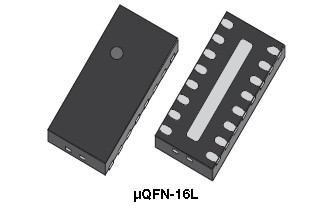

The device is packaged in μQFN-16L with a 400 μm pitch, which minimizes the PCB area

技术特性

ultralarge bandwidth: 6.3 GHz
ultralow capacitance: 0.6 pF
low time domain reflection
low leakage current: 100 nA at 25 °C
extended operating junction temperature range: -40 °C to 150 °C
package size in mm: 3.3 x 1.5 x 0.55
RoHS compliant
Benefits
- high ESD robustness of the equipment
- suitable for high density boards
Complies with following standards
- MIL-STD 883G Method 3015-7 Class 3B:
  - 8 kV
- IEC 61000-4-2 level 4:
  - 8 kV (contact discharge)
  - 15 kV (air discharge)

应用领域

HDMI 1.3 and 1.4
Digital Video Interface
Display Port
Serial ATA

Benefits

High ESD robustness of the equipment
Suitable for high density boards

Complies with the following standards:

MIL-STD 883G Method 3015-7 Class 3B:
– 8 kV
IEC 61000-4-2 level 4:
– 15 kV (air discharge)
– 8 kV (contact discharge)

功能框图

HSP061-8M16 订购信息

订购型号	产品状态	美金价格	数量	封装	包装形式	温度范围	材料声明
HSP061-8M16	Active		1000	uQFN-16L	Tape And Reel		HSP061-8M16

DATASHEET

描述	版本	大小
HSP061-8M16 : DS6981: 8-line ESD protection for high speed lines	2	177KB
