L6206 PowerSPIN: Dual DMOS Full Bridge Driver with Diagnostic
The L6206 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower-BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6206 features thermal shutdown and a non-dissipative overcurrent detection on the high side Power MOSFETs plus a diagnostic output that can be easily used to implement the overcurrent protection
技术特性
- OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
- 5.6A OUTPUT PEAK CURRENT (2.8A DC)
- RDS(ON) 0.3 Ω TYP. VALUE @ Tj = 25 °C
- OPERATING FREQUENCY UP TO 100KHz
- PROGRAMMABLE HIGH SIDE OVERCURRENT DETECTION AND PROTECTION
- DIAGNOSTIC OUTPUT
- PARALLELED OPERATION
- CROSS CONDUCTION PROTECTION
- THERMAL SHUTDOWN
- UNDER VOLTAGE LOCKOUT
- INTEGRATED FAST FREE WHEELING DIODES
|

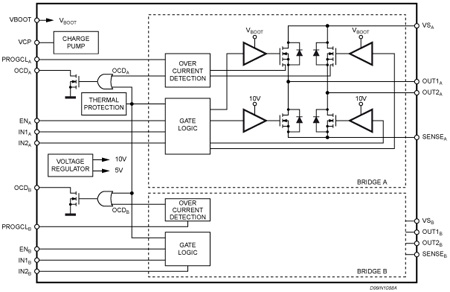

功能框图
 |
L6206 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| L6206D |
Active |
|
1000 |
SO-24 |
Tube |
|
|
| L6206D013TR |
Active |
|
1000 |
SO-24 |
Tape And Reel |
|
|
| L6206PD |
Active |
|
1000 |
PowerSO 36 |
Tube |
|
|
| L6206PD013TR |
Active |
|
1000 |
PowerSO 36 |
Tape And Reel |
|
|
| L6206N |
Active |
|
1000 |
PDIP 24 .3 |
Tube |
|
|
DATASHEET
| 描述 |
版本 |
大小 |
| L6206 : DMOS dual full bridge driver |
6 |
422KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN1762: L6205, L6206, L6207 dual full bridge drivers |
1 |
1468KB |
USER MANUALS
| 描述 |
版本 |
大小 |
| UM0240: ST industrial communication board - EVALCOMMBOARD |
1 |
2326KB |
PRODUCT PRESENTATIONS
PCB LAYOUTS
SCHEMATIC PACKS
BOARDS AND TOOLS
| 型号 |
描述 |
| EVAL6205N |
L6205 DMOS Dual Full Bridge Driver Evaluation Board |
| EVALPRACTISPIN |
PractiSPIN Interface Board |
| EVAL6206PD |
L6206 DMOS Dual Full Bridge Driver in PowerSO Package Evaluation Board |
| EVAL6206N |
L6206 DMOS Dual Full Bridge Driver in PowerDIP Package Evaluation Board |
