LM335 Precision Temperature Sensor
The LM135, LM235, LM335 are precision temperature sensors which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K.
The circuit has a dynamic impedance of less than 1Ω and operates within a range of current from 450µA to 5mA without alteration of its characteristics.
Calibrated at +25°C, the LM135, LM235, and LM335 have a typical error of less than 1°C over a 100°C temperature range. Unlike other sensors, the LM135, LM235, LM335 have a linear output
技术特性
|

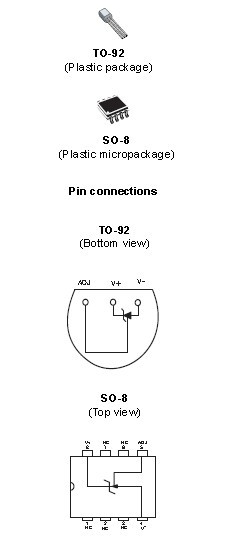

管脚定义图 |
LM335 订购信息
| 订购型号 | 产品状态 | 美金价格 | 数量 | 封装 | 包装形式 | 温度范围 | 材料声明 |
| LM335AZT | Active | 1000 | TO-92 | Tape And Reel | -40 °C-100 °C | LM335AZT | |
| LM335AZ | Active | 1000 | TO-92 | Poly Bag | -40 °C-100 °C | LM335AZ | |
| LM335ADT | Active | 1000 | SO-8 | Tape And Reel | -40 °C-100 °C | LM335ADT | |
| LM335DT | Active | 1000 | SO-8 | Tape And Reel | -40 °C-100 °C | LM335DT | |
| LM335D | Active | 1000 | SO-8 | Tube | -40 °C-100 °C | LM335D | |
| LM335AD | Active | 1000 | SO-8 | Tube | -40 °C-100 °C | LM335AD | |
| LM335Z | Active | 1000 | TO-92 | Poly Bag | -40 °C-100 °C | LM335Z |
DATASHEET
| 描述 | 版本 | 大小 |
| LM335 :DS0437: Precision temperature sensors | 3 | 554KB |
