M41TC8025 Highly accurate, temperature-compensated serial real-time clock (RTC) with embedded crystal
The M41TC8025 is a serial I²C real-time clock (RTC) incorporating temperature compensation to maintain accurate timekeeping over the industrial temperature range of -40 to +85 °C. In addition to providing date and time (seconds, minutes, hours, day-of-week, date (day of month), month and year), the device also provides an alarm function, fixed-cycle timer, time update interrupt and programmable frequency outputs (1 Hz, 1 KHz and 32 KHz).

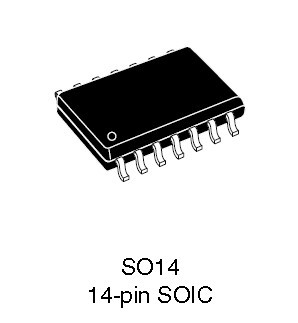

The M41TC8025 is provided in a 200 mil, 14-pin SOIC package.
技术特性
- Embedded high-stability 32 KHz DTCXO
- Temperature-compensated serial real-time clock
- ±5.0 ppm max from -40 to 85 °C
- ±3.8 ppm max from 0 to 50 °C
- Supply voltage
- Clock operating & timekeeping: 1.6 to 5.5 V
- I²C interface operating: 1.8 to 5.5 V
- Temperature compensation: 2.2 to 5.5 V
- 0.8 μA typical current at 3.0 V supply voltage
- 400 kHz I²C interface
- Time-of-day alarm (with interrupt)
- Fixed-cycle timer interrupt function
- Time update interrupt function
- Programmable frequency output
- FOUT = 1 Hz, 1 KHz and 32 KHz
- Registers for seconds, minutes, hours, day-of-week, date (day of month), month and year with automatic leap year compensation
- Programmable temperature compensation intervals (0.5 s, 2 s default, 10 s, 30 s)
|
管脚定义图
应用领域
- Power meters
- Industrial applications
|
M41TC8025 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| M41TC8025AMC6F |
Evaluation |
|
1000 |
SOIC 14L 200MIL BODY |
Tape And Reel |
|
M41TC8025AMC6F |
DATASHEET
| 描述 |
版本 |
大小 |
| M41TC8025 :DB1729: Highly accurate, temperature-compensated serial real-time clock (RTC) with embedded crystal |
2 |
183KB |
TECHNICAL ARTICLES
| 描述 |
版本 |
大小 |
| TA0344: Highly accurate, automatic temperature-compensated real-time clock (RTC) solution |
1 |
251KB |
