ST-9150 Low-cost advanced HD decoding IC for TV
The ST-9150 uses state of the art process technology to provide an ultra low-cost, fully featured HD AVC decoder IC. It is a highly integrated system-on-chip suitable for TV markets across all networks (cable/satellite/DTT/x-DSL/IP) worldwide. The ST-9150 is targeted at the latest Operator and CE manufacturer requirements for TVs which utilize advanced HD decoding (H264/VC-1/MPEG2), and which conform to DVB, ISMA,ATIS-IIF, SCTE, DirecTV, ATSC, ARIB, CEA, ITU, OpenCable and MSTV specifications
技术特性
- Advanced high definition video decoding (H264/VC-1/MPEG2)
- Advanced standard definition video decoding (H264/VC-1/MPEG2/AVS)
- Advanced multi-channel audio decoding (MPEG 1, 2, MP3, DD/DD+, AAC/AAC+, WMA9/WMA9pro)
- Linux, Windows CE, and OS21 compatible ST40 applications CPU (450 MHz)
- 32-bit DDR1/DDR2 compatible local memory interface
- Multi-stream, DVR capable transport stream processing
- Extensive connectivity (dual USB hosts, e-SATA, Ethernet MAC/MII/RMII, MPX, and PCI)
- Advanced security and DRM support including SVP, MS-DRM, and DTCP-IP
- DVD data decryption
|

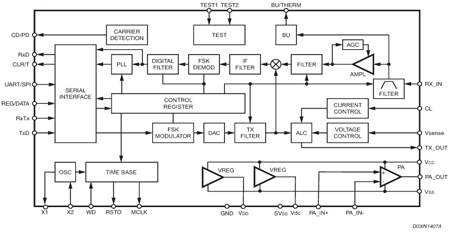

功能框图
 |
ST-9150 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| ST-9150BUC |
Active |
|
|
FPBGA620 27x27x2.19 |
Tray |
|
ST-9150BUC |
| ST-9150DUC |
Active |
|
|
FPBGA620 27x27x2.19 |
Tray |
|
ST-9150DUC |
| ST-9150IUC |
Active |
|
|
FPBGA620 27x27x2.19 |
Tray |
|
ST-9150IUC |
DATA BRIEF
| 描述 |
版本 |
大小 |
| ST-9150 :Low-cost advanced HD decoding IC for TV |
2 |
166KB |
