TS3431 1.24V PROGRAMMABLE SHUNT VOLTAGE REFERENCE
The TS3431 is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range (- 40 °C to + 125 °C). The output voltage can be set to any value between 1.24 V and 24 V with an external resistor bridge.
Available in SOT23-3 surface mount package, it can be used in application designs where space saving is critical
技术特性
- Adjustable output voltage: 1.24 to 24 V
- Several precision levels @ 25°C ± 2%, ± 1%, ± 0.5% and ± 0.25%
- Sink current capability: 0.4 to 100 mA
- Industrial temperature range: - 40°C to +125°C
- Performance compatible with industry standard TL431
|
应用领域
- Computers
- Instrumentation
- Battery chargers
- Switch mode power supplies
- Battery-operated equipment

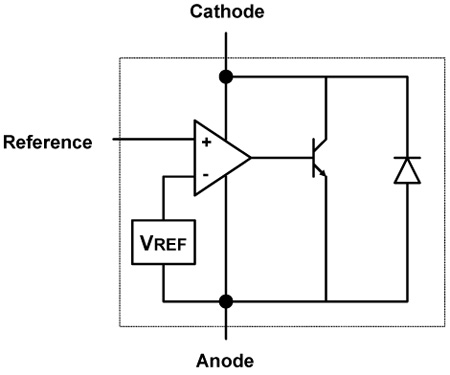

功能框图
 |
TS3431 订购信息
| 订购型号 |
产品状态 |
美金价格 |
数量 |
封装 |
包装形式 |
温度范围 |
材料声明 |
| TS3431AILT |
Active |
|
1000 |
SOT23 |
Tape And Reel |
-40 °C-125 °C |
TS3431AILT |
| TS3431BILT |
Active |
|
1000 |
SOT23 |
Tape And Reel |
-40 °C-125 °C |
TS3431BILT |
| TS3431CILT |
Active |
|
1000 |
SOT23 |
Tape And Reel |
-40 °C-125 °C |
TS3431CILT |
| TS3431ILT |
Active |
|
1000 |
SOT23 |
Tape And Reel |
-40 °C-125 °C |
TS3431ILT |
DATASHEET
| 描述 |
版本 |
大小 |
| TS3431 : DS3673: 1.24 V programmable shunt voltage reference |
4 |
163KB |
APPLICATION NOTES
| 描述 |
版本 |
大小 |
| AN2944: Plethysmograph based on the TS507 |
1 |
520KB |
