854668 滤波器 - STD 低损耗

The TriQuint 854668 is a high-performance IF SAW filter with a center frequency of 70 MHz and a 3.0 dB bandwidth of 16.5 MHz. It features low loss with excellent attenuation, and is designed to be used with a single ended input and output. The device is RoHS compliant and lead-free.

技术特性
  • Usable bandwidth of 14 MHz
  • Typical 3 dB bandwidth of 14.45 MHz
  • Low loss
  • High attenuation
  • Single-ended operation, 50 Ohm
  • Ceramic Surface Mount Package (SMP)
  • Hermetic

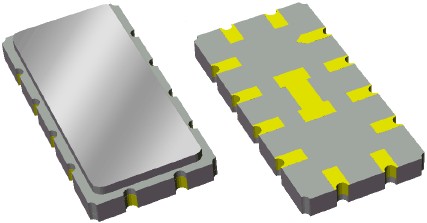

854668 产品实物图

854668 产品实物图

应用领域 APPLICATION
  • General Purpose
  • For IF applications
技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
70 14 13.0 max SE 13.3 x 6.5
订购信息 Ordering Information
854668 packaged part
854668-EVB  evaluation board

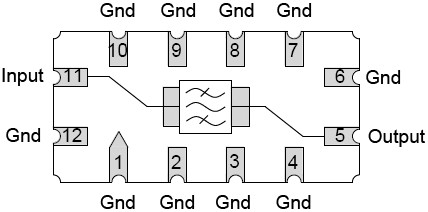

功能框图 Functional Block Diagram

854668 功能框图

应用技术支持与电子电路设计开发资源下载 版本信息 大小
854668:S 参数Matched
854668:S 参数Unmatched
854668:封装信息
854668 数据资料DataSheet下载:PDF Rev.V2 2 页
