855595 320 MHz SAW 滤波器
The TriQuint 855595 is a high-performance IF SAW filter with a center frequency of 320 MHz and a 3.0 dB bandwidth of 22 MHz. It features low loss with excellent attenuation, and is designed to be used with a single ended input and output. The device is RoHS compliant and lead-free.
技术特性
- Typical 3 dB bandwidth of 22 MHz
- Low loss
- High attenuation
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Small size
- Dimensions: 9.0 x 7.0 x 1.5 mm
- Hermetic RoHS compliant, lead-free

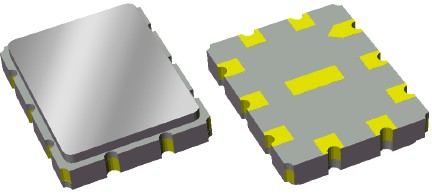

855595 产品实物图
|
应用领域 APPLICATION
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 320 |
22 |
19.3 |
SE / SE |
9.0 x 7.0 |
订购信息 Ordering Information
| 855595 |
packaged part |
| 855595-EVB |
evaluation board |

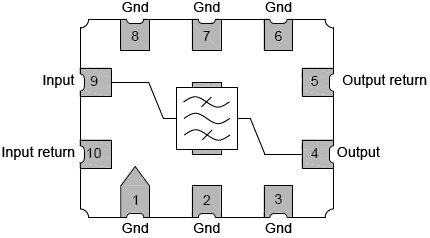

功能框图 Functional Block Diagram
|
