技术特性
- Usable bandwidth of 83.5 MHz
- High attenuation
- No impedance matching required for operation at 50 Ohm
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free

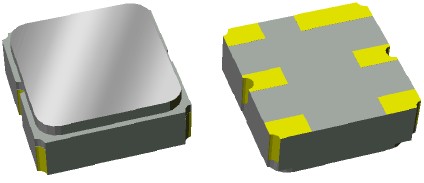

855916 产品实物图
|
应用领域 APPLICATION
- Bluetooth
- Industrial, Scientific and Medical (ISM)
- Wireless LAN (WLAN)
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 2441.75 |
83.5 |
5.0 max |
se |
3.0 x 3.0 |
订购信息 Ordering Information
| Part No. |
Description |
| 855916 |
packaged part |
| 855916-EVB |
evaluation board |

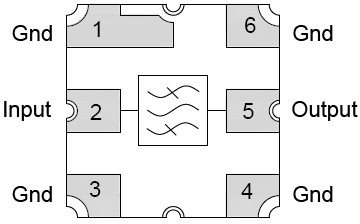

功能框图 Functional Block Diagram
|
