技术特性

• Typical 3 dB bandwidth of 57.0 MHz
• High attenuation
• Single-ended operation
• Ceramic Surface Mount Package (SMP)
• Replaces part # 851947 (BW 3dB = 56 MHz)
• Hermetic
• RoHS compliant (2002/95/EC), lead-free

订购信息 Ordering Information

• 856074

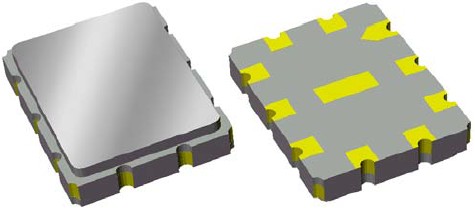

856074 产品实物图

应用领域 APPLICATION

• Broadband

技术指标

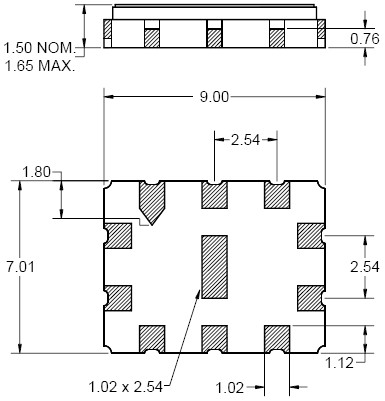

封装外形Package Outline
