856378 IF 滤波器,GSM

The TriQuint 856378 is a high rejection Intermediate Frequency (IF) filter for use in narrowband wireless communications systems. The center frequency of this filter is 211 MHz and the bandwidth is 0.2 MHz. The insertion loss is 5.2 dB maximum and the filter is packaged in a hermetic surface-mounted package.

技术特性
  • Usable bandwidth of 0.2 MHz
  • Low loss
  • High attenuation
  • Single-ended operation, 50 Ohm
  • Ceramic Surface Mount Package (SMP)
  • Hermetic
订购信息 Ordering Information
  • 856378

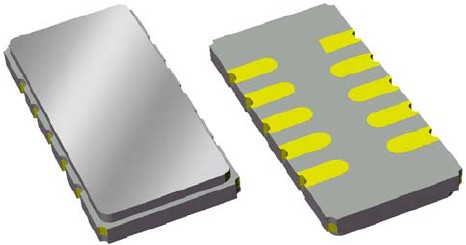

856378 产品实物图

856378 产品实物图

应用领域 APPLICATION
  • Transceivers
技术指标
频率(MHz) 带宽 (MHz) 插入损耗 (dB) 操作模式 封装(mm)
211 0.2 5.2 SE/SE 13.3 x 6.5
封装外形Package Outline
856378 封装外形
应用技术支持与电子电路设计开发资源下载 版本信息 大小
856378 数据资料DataSheet下载:PDF Rev.V2 2 页
