856532 RF 滤波器,UMTS

The TriQuint 856532 is a low loss RF filter with a center frequency of 1950 MHz and a bandwidth of 60 MHz. The insertion loss is 2.2 dB and the filter is provided in a small surface mount hermetic package.

技术特性

Usable bandwidth of 60 MHz
Low loss
High attenuation
No impedance matching required for operation at 50 Ohm
Single-ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), lead-free

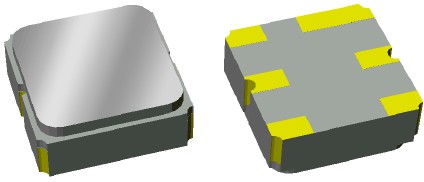

856532 产品实物图

应用领域 APPLICATION

Transceivers
Coverage Enhancement Repeaters
Tower Mounted Amplifiers

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
1950	60	2.2	SE/SE	3.0 x 3.0

订购信息 Ordering Information

856532

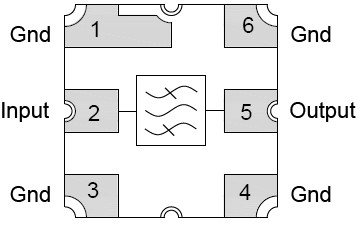

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856532:S 参数
856532 数据资料DataSheet下载：PDF	Rev.V2	2 页
