856656 低损耗IF滤波器
The TriQuint 856656 is a high rejection Intermediate Frequency (IF) filter for use in wideband wireless communications systems. The center frequency of this filter is 140 MHz and the bandwidth is 10 MHz. The insertion loss is 11 dB maximum and the filter is packaged in a hermetic surface-mounted package.
技术特性
- Usable bandwidth of 10 MHz
- Low loss
- High attenuation
- Designed to minimize EVM
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
订购信息 Ordering Information

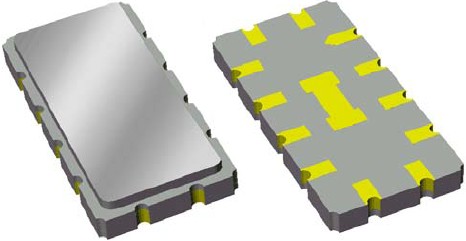

856656 产品实物图
|
应用领域 APPLICATION
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 140 |
10 |
11 |
SE/SE |
13.3 x 6.5 |

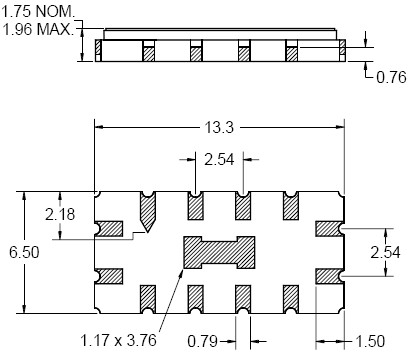

封装外形Package Outline
 |
