856678 RF滤波器 - 2100MHz波段
The TriQuint 856678 is a low loss RF filter with a center frequency of 1950 MHz and a bandwidth of 60 MHz. The insertion loss is 1.8 dB and the filter is provided in a small surface mount hermetic package.
技术特性
- Usable bandwidth of 60 MHz
- Low loss
- Single-ended operation
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 1950 |
60 |
- |
SE |
3.0 x 3.0 |
订购信息 Ordering Information
856678 产品实物图
|
应用领域 APPLICATION
- Transceivers
- Coverage Enhancement Repeaters
- Tower Mounted Amplifiers

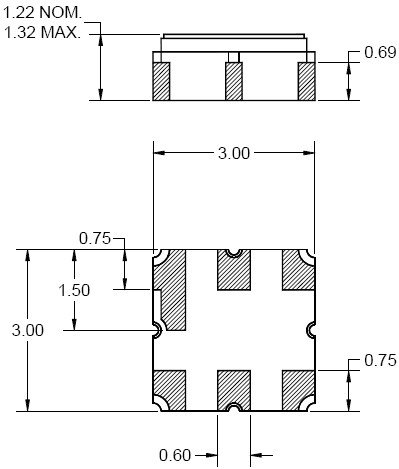

封装外形Package Outline
 |
