856731 IF SAW 滤波器 - 多标准

The 856731 is a high performance IF SAW filter developed for 4G and Multistandard infrastructure applications. It features low loss coupled with excellent attenuation, and is designed to be used with multiple impedance values and configurations. The filter is developed for excellent in-band characteristics in order to minimize system bit-error rates. This device is RoHS compliant and Pb-free.

技术特性

Usable bandwidth of 100 MHz
Absolute delay of 450ns
Low group delay variation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), lead-free

订购信息 Ordering Information

856731

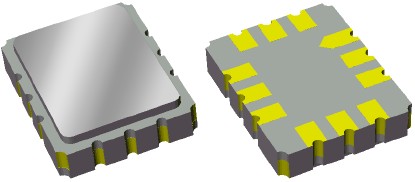

856731 产品实物图

应用领域 APPLICATION

RF Signal Alignment
Power Amplifiers

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
192	60	14.5	SE/BAL	7 x 5.5

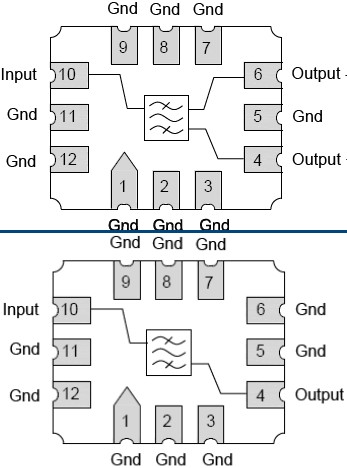

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856731 数据资料DataSheet下载：PDF	Rev.V2	2 页
