856844 RF SAW 滤波器
The TriQuint 856844 is a low loss RF filter with a center frequency of 782 MHz and a bandwidth of 10 MHz. The insertion loss is 2.5 dB maximum and the filter is provided in a small surface mount hermetic package.
技术特性
- Usable bandwidth of 10 MHz
- Low loss
- High attenuation
- Single-ended operation at 50 Ohm
- Ceramic Surface Mount Package (SMP)
- Hermetic
- RoHS compliant (2002/95/EC), lead-free
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 782 |
10 |
2.5 max |
SE |
3 x 3 |

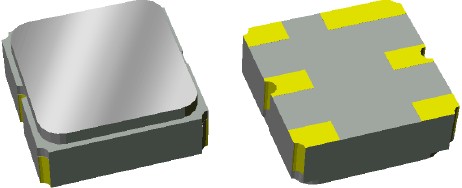

856844 产品实物图
|
应用领域 APPLICATION
- Transceivers
- Coverage Enhancement Repeaters
- Tower Mounted Amplifiers
订购信息 Ordering Information

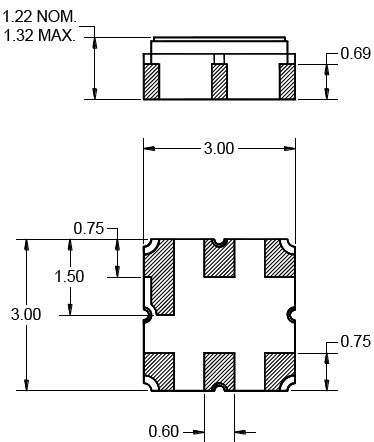

封装外形Package Outline
 |
