856966 IF SAW 滤波器

The TriQuint 856966 is a high-performance IF SAW filter with a center frequency of 358.4 MHz and a 1 dB bandwidth of 24.8 MHz. It features low loss with excellent attenuation, and is designed to be used with a balanced input and output. The small size of this surface mounted filter makes it an economical choice for demanding applications such as WCDMA / LTE or other similar high data rate communications standards. The device is RoHS compliant and lead-free.

技术特性

Usable bandwidth of 24.8 MHz
Low loss
High attenuation
Low EVM
Balanced operation
Ceramic Surface Mount Package (SMP)
Small Size: 7.01 x 5.51 x 1.63 mm
Hermetic RoHS compliant, lead-free

856966 产品实物图

应用领域 APPLICATION

CDMA, WCDMA and LTE
PCS

订购信息 Ordering Information

856966

技术指标

频率(MHz)	带宽 (MHz)	插入损耗 (dB)	操作模式	封装(mm)
358.4	24.8	11.0	BAL	7 x 5.5

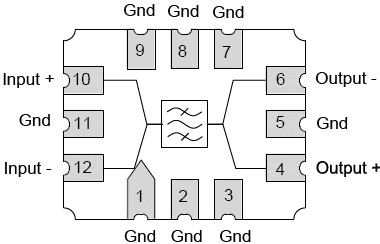

功能框图 Functional Block Diagram

应用技术支持与电子电路设计开发资源下载	版本信息	大小
856966 数据资料DataSheet下载：PDF	Rev.V2	2 页
