856980 70 MHz IF SAW 滤波器
The 856980 is designed to offer intermediate frequency signal control with low insertion loss at center frequency and high selectivity with neighboring frequencies. The filter requires external matching to operate in a 50 ohm environment and is surface-mountable on any PCB. These filters also offer a tremendous size and weight advantage over ceramic filters (10x smaller) and cavity filters (100x smaller) while still being robust enough for high-reliability and Defense and Aerospace applications.
技术特性
- Low loss
- High selectivity
- Single-ended operation
- Ceramic surface mount Package (SMP)
- Small size
- Hermetic, RoHS compliant, lead-free

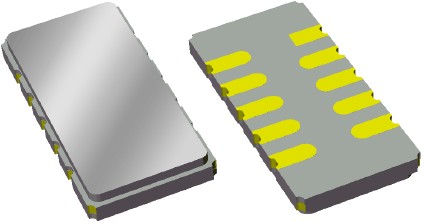

856980 产品实物图
|
应用领域 APPLICATION
- IF Applications
- High Selectivity
技术指标
| 频率(MHz) |
带宽 (MHz) |
插入损耗 (dB) |
操作模式 |
封装(mm) |
| 70 |
2.4 |
10 |
SE to SE |
13.3 x 6.5mm |
订购信息 Ordering Information
| 856980 |
packaged part |
| 856980-EVB |
evaluation board |

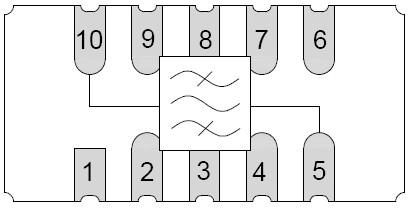

功能框图 Functional Block Diagram
|
